SERVICE – Fire Plans Survey

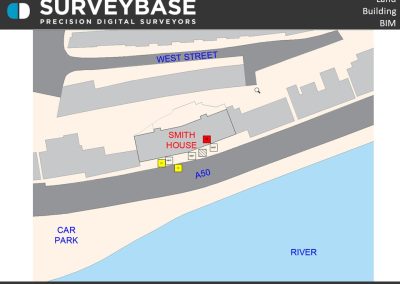

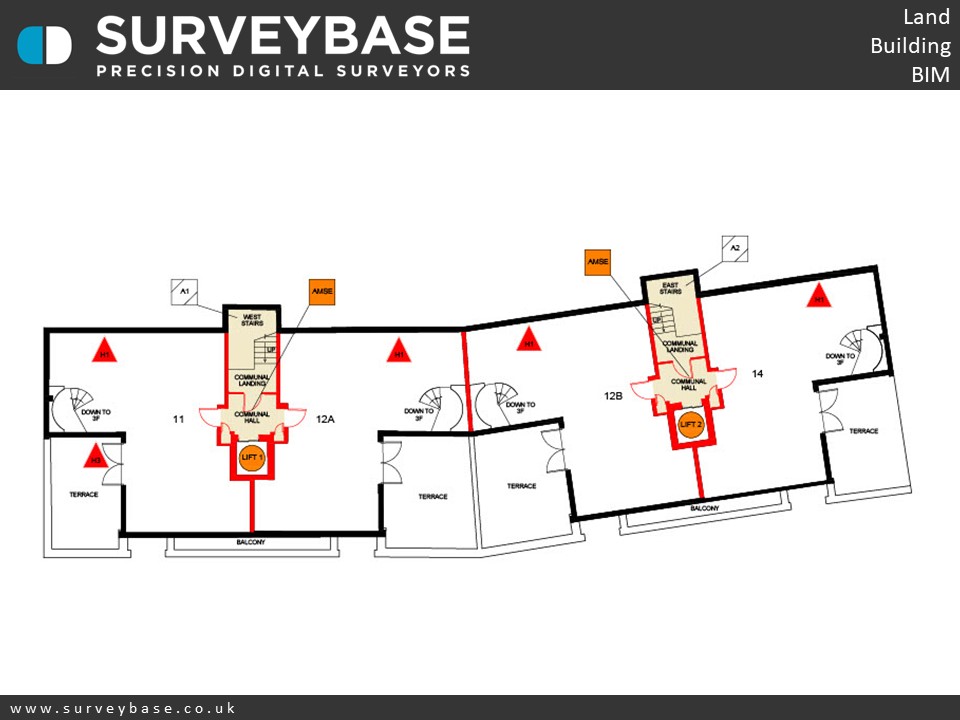

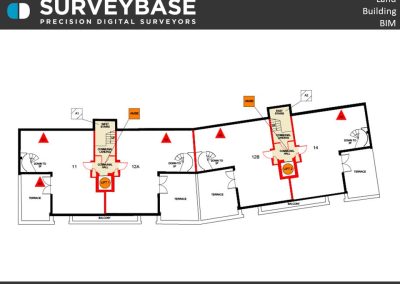

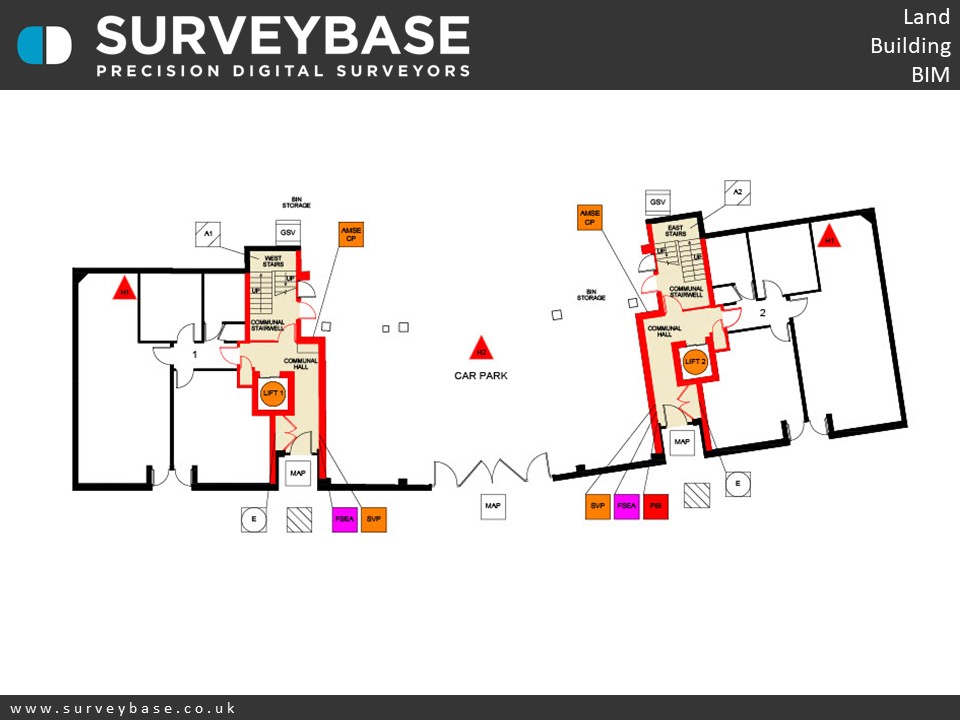

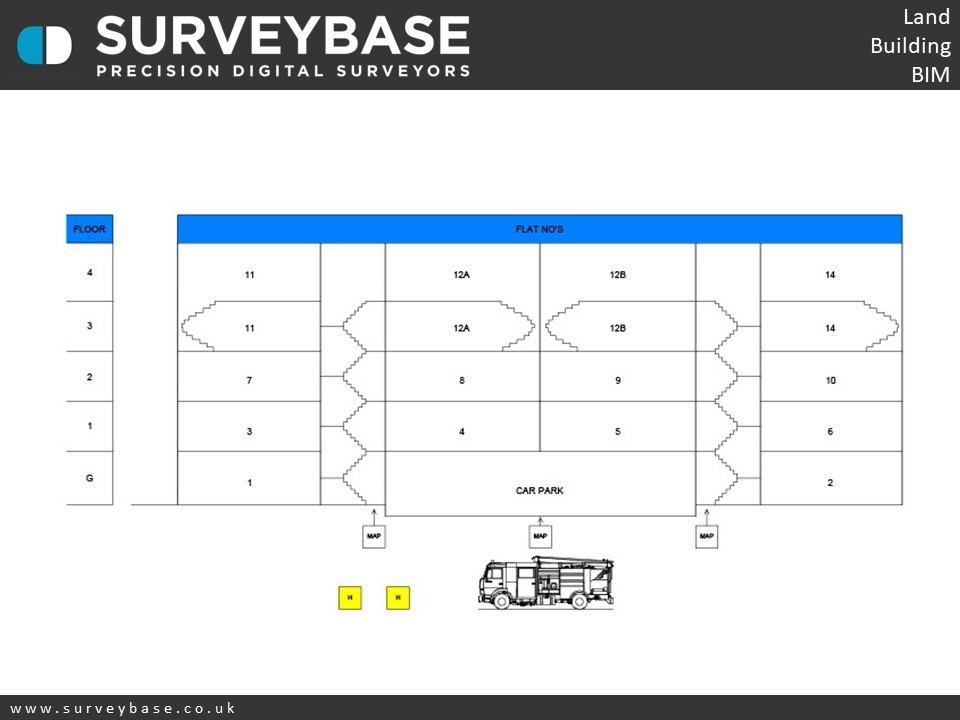

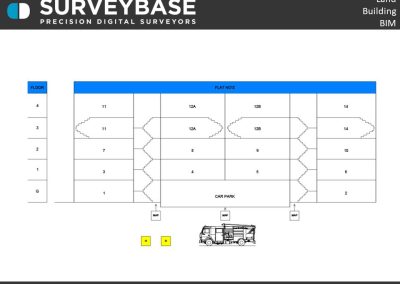

DELIVERABLES –Orientation Plan, Vertical Section Plan, Floor Plans



In January 2023, the governments new Fire Safety Regulations 2022 made it a requirement for owners and managers of high-rise residential buildings to provide information on their buildings to their local fire and rescue service. This includes buildings of two or more domestic premises, is at least 18 metres tall or has at least seven storeys

To support this requirement Surveybase have been appointed to undertake a programme of fire plan surveys across the city of Bristol on behalf of a large property management company.

We offer a 3 tier approach to Fire Plan Surveys.

  • Level 1 – Where Accurate As Built Plans Exist
  • Requires a desktop update to the existing as built plans to present building layout and fire service information to regulation.
  • Level 2- Where Historic As Built Plans Exist
  • Requires a verification survey to confirm plan integrity with general updates to building layout and fire service information to meet regulation.
  • Level 3 – Where No As Built Plans Exist
  • Requires a full measured building survey and production of building layout plans with fire service information to meet regulation.

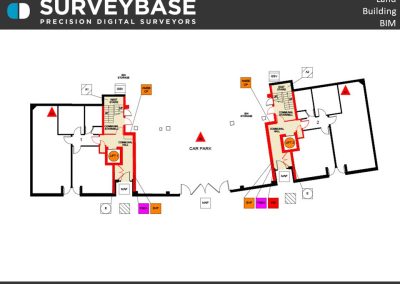

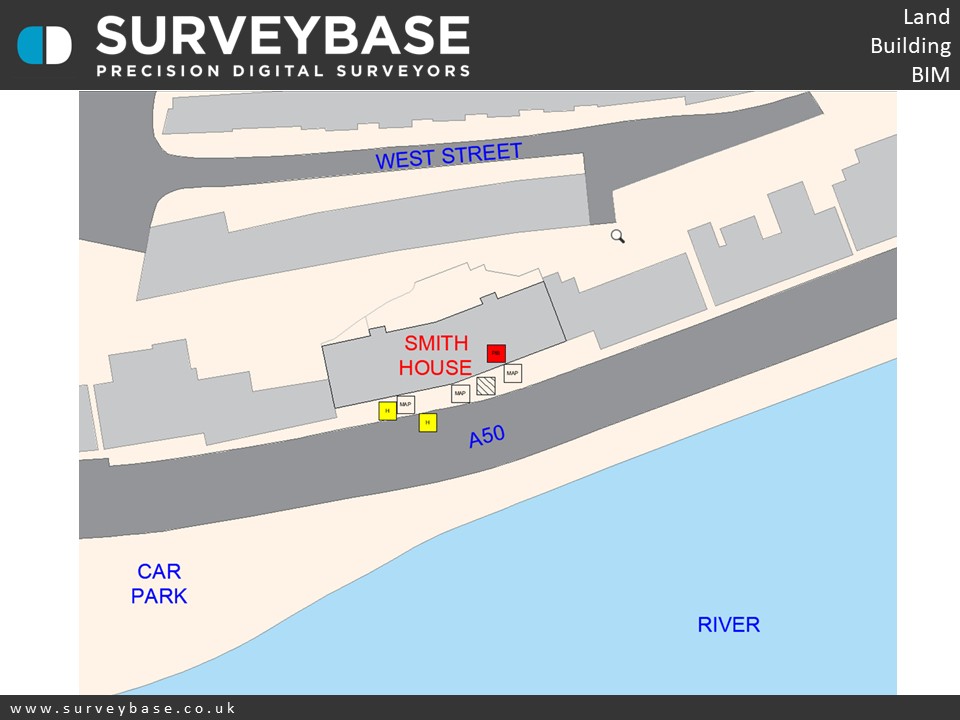

The regulation recommends the installation of a Premises Information Box (PIB) to contain information needed by Fire and Rescue Services including an Orientation Plan, Floor Plans and a Vertical Section. The plans provide critical information on building levels, access points, evacuation routes and the location of fire safety equipment and systems.

The Fire Safety Regulations 2022 have been introduced as an important step towards implementing the recommendations of the Grenfell Tower Inquiry Phase 1 report.

If you would like to find out more about our Fire Plan Surveys, or our other services such as: TopographicalMeasured Building, or Scan To 3D Revit survey services, please visit the Surveybase website or call your local office;

Bristol 01225 314370, Reading 0118 2072508, London 02039 066892, Croydon 02033 764379, or Cambridge 01223 632613.

To obtain a quotation please email your brief to or use our online quotation portal; Fast Quote.

Surveybase Limited are a precision digital surveying practice working on residential and commercial developments across the South of The U.K.
