By Jordan King, Managing Director, Surveybase
For any refurbishment, extension, or redevelopment, precise building information from the outset is critical to achieving a successful outcome. A measured building survey provides precise, up-to-date measurements of a building’s internal and external structure, allowing architects, engineers, designers, and construction professionals to work with confidence and avoid costly errors.
This guide outlines the most common questions about measured building surveys and explains their purpose, benefits, and impact on project success.
What Is a Measured Building Survey?
A measured building survey (often called an MBS or Building Survey Plan) is a detailed and scaled representation of a building’s layout, structure, and architectural features. It captures the as-existing condition of a property and typically includes:
• Internal floor plans
• Elevations and roof plans
• Sections and structural details
• Door and window positions and dimensions
• Floor levels, ceiling heights, and critical datums
• Architectural features such as beams, columns, and changes in level

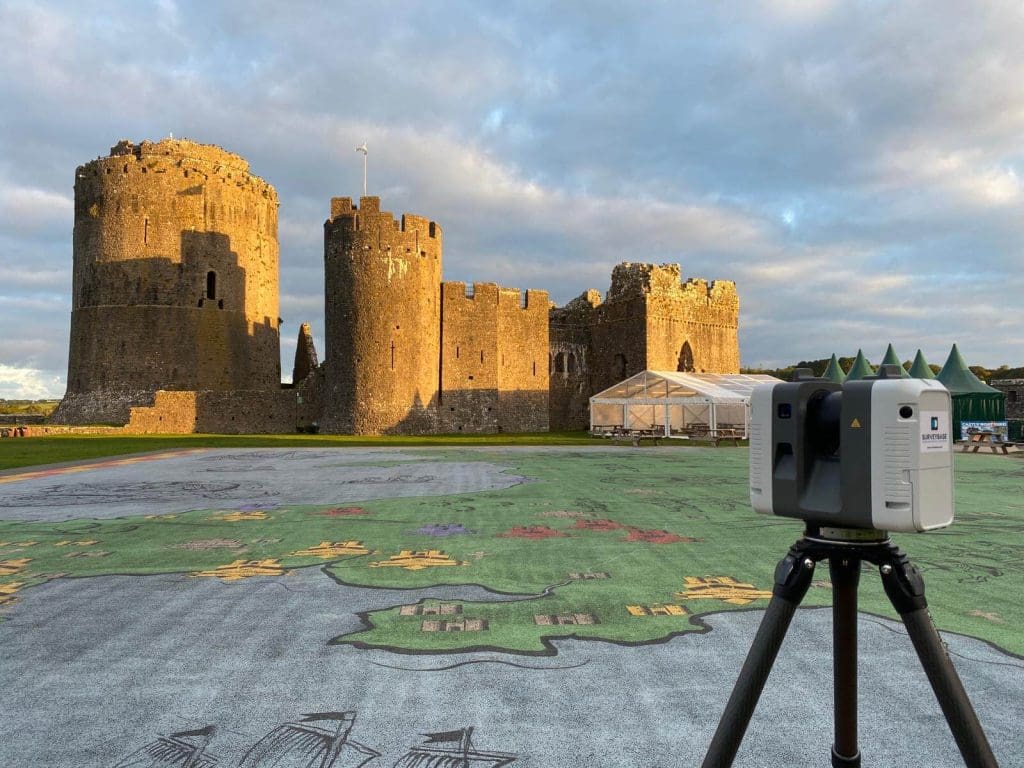

Surveyors use advanced tools such as 3D laser scanners to capture millions of precise measurements. The result is a highly accurate 2D drawing set or 3D model, forming the foundation for design, planning, and construction decisions.
Why Do You Need a Measured Building Survey?
A measured building survey ensures designers and contractors have an accurate understanding of the existing building. Without it, projects may suffer from incorrect assumptions, design conflicts, or structural surprises—leading to delays, redesigns, and additional costs.
You may need a measured building survey if you are:
• Designing an extension, renovation, or reconfiguration → ensures new designs fit the real geometry
• Preparing planning or building control applications → provides accurate documentation
• Developing heritage or listed buildings → captures architectural detail for conservation-led design
• Conducting structural assessments → supports engineers with reliable dimensional data
By knowing the exact shape, layout, and structure of your building, you can make informed decisions and eliminate guesswork.
What Does a Measured Building Survey Include?
Every project is unique, but typical deliverables include:
• 2D CAD drawings (DWG or PDF)
• Internal floor plans showing room layouts, structural elements, and fixtures
• Elevations and roof plans for planning or design use
• Building sections illustrating vertical relationships and levels
• Ceiling heights, floor levels, and critical datums
• Detailed architectural features, such as beams, cornices, columns, or recesses
• Optional advanced outputs:
• 3D Revit (BIM) models
• Laser-scan point clouds
• High-density 3D mesh models
How Is a Measured Building Survey Done?
A measured building survey is carried out using advanced digital surveying technology to capture accurate, high-resolution data from every part of the building. The process typically involves:
• 3D laser scanners, which record millions of measurement points per second to capture walls, ceilings, floors, and architectural details with exceptional accuracy.
• UAV drones (when suitable) to record external façades, roofs, or hard-to-access areas safely and efficiently.
All captured data is combined into a point cloud, a highly detailed digital dataset representing the exact geometry of the building. From this point cloud, our technicians produce clear, precise 2D plans, elevations, sections, and 3D BIM models, ensuring every measurement is reliable and ready for design or planning use.
How Long Does a Measured Building Survey Take?
Timelines depend on the size, complexity, and accessibility of the building. A small residential property can often be scanned in a single day, while multi-storey, historic, or large commercial buildings may require multiple days on site.
After the site visit, data processing and drawing production follow—typically delivered promptly so project teams can progress without delay.
How Much Does a Measured Building Survey Cost?
Several factors influence the cost of a measured building survey:
• Building size and complexity
• Required level of detail (LOD)
• Presence of architectural features (e.g., ornate heritage elements)
• Accessibility and occupancy
• Additional outputs like BIM models or point clouds
Investing in a high-quality measured survey often saves significant cost later by avoiding redesigns, structural clashes, and incorrect assumptions. To receive an accurate quote, provide a floor plan, site address, or details of your project.
What Format Will You Receive the Survey In?
Deliverables can be provided in:
• Digital CAD files (DWG or DXF)
• 3D Revit (BIM) models (.RVT or IFC)
• Point cloud files (.E57, .RCP, .LAS)
• PDF drawing packs for easy viewing and sharing
When Should You Arrange a Measured Building Survey?
The best time to commission a survey is before any design or planning work begins. This ensures all decisions are based on accurate, verified building data and prevents costly revisions later.
Why Choose Surveybase?
Choosing Surveybase means partnering with a surveying company that combines over 20 years in business, highly trained surveyors, and cutting-edge technology to deliver high-quality results across the UK. Our surveys provide:
• Over 25 years in business: Nearly three decades of experience delivering reliable surveys for projects of all sizes and types.
• Experienced and trained surveyors: Our team is fully qualified, with the skills and expertise to handle projects of any scale or complexity.
• UK-wide coverage: We deliver measured surveys across the country, ensuring consistent, high-quality service no matter where your project is located.
• Proven credibility: We are ISO 9001 certified, full members of The Survey Association, and accredited by Constructionline and SafeContractor.
• 5-star reputation: Our clients consistently rate us highly for accuracy, professionalism, and reliability, reflected in our industry-leading 5-star Google reviews.
• Efficiency and speed: Surveys are delivered on schedule, enabling project teams to make informed decisions while reducing delays, rework, and costs.
• Advanced technology integration: We leverage UAV drones, 3D laser scanning, and LiDAR to provide detailed, actionable data that integrates seamlessly with CAD and BIM workflows.
• Tailored solutions: Whether residential, commercial, heritage, or large infrastructure projects, our surveys are customised to meet your project’s specific requirements.
