Office Building, London

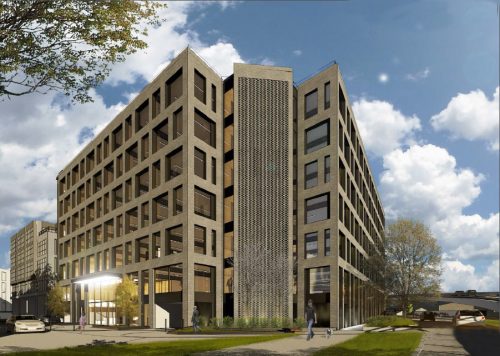

One Burlington is a 6 storey office building with two decks of car parking in a high profile location fronting the roundabout of the A4 and A316 in Chiswick, London.

The site will be developed to make full use of an internal courtyard and extend the internal area to over 150,000sq.ft. This exciting complex will benefit from a high specification fit out including state of the art HVAC system, balanced work and breakout spaces. The developer aims to achieve a BREEAM “Excellent” standard.

Survey Base Ltd were appointed by Reichmann Properties PLC to deliver precision measured survey records of the entire site. Our comprehensive brief encompassed a Topographical Survey including the location and heights of surrounding buildings and all features of the adjoining road network. The Measured Building Survey was undertaken using Faro Focus Laser Scanning Instruments which generated a rich point cloud perfect for processing in 2D AutoCAD or 3D Revit (BIM). The site survey took just 5 working days to complete and totalled over 1,000 individual scan points.

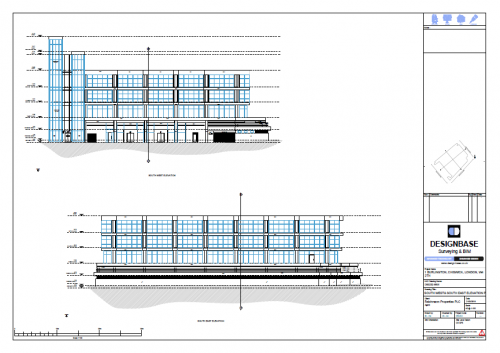

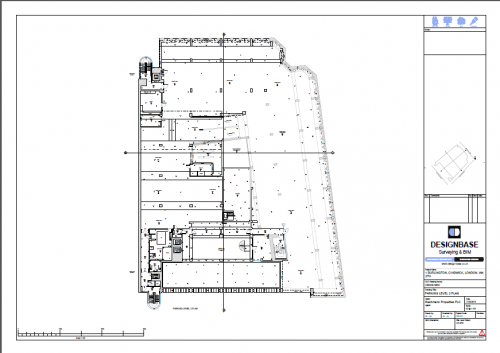

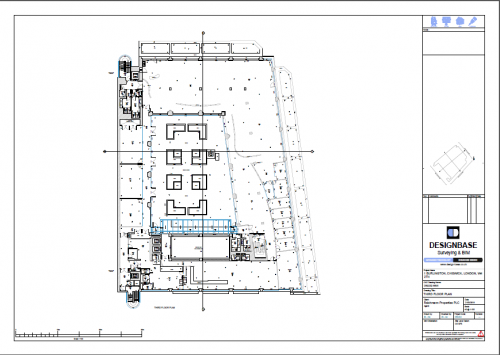

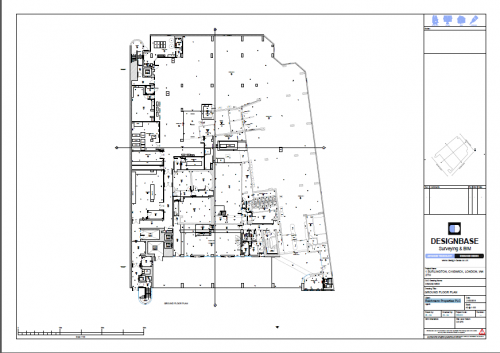

For One Burlington the Client requested 2D AutoCAD plans of each floor level, roof, all elevations and cross sections. The Survey Base “standard” MBS survey is a detailed record of building features purposely specified for major development projects. Architects benefit from spot levels on a 2M grid, ceiling, beam, cill and head heights, ceiling features, architectural features, MEP layout through to fitted furniture. Processing the plans required 4 weeks for 2 expert Technicians. We released a draft edition after 2 weeks to support our Clients need to progress with design proposals.

One Burlington is a stand out project for Survey Base Ltd. It demonstrates our ability to safely deliver large scale, high profile survey projects within short deadlines.
