Measured Building Survey – Georgian Mansion, Cheltenham

Measured Building Survey Cheltenham


TITLE – Measured Building Survey, Cheltenham
SERVICE – 2D Topographical, GPS & 3D Laser Scan Survey
METHOD – Total Station, 3D Laser Scan, GPS
SPECIFICATION – Level 2 – Standard Detailing
DELIVERABLES – 2D Topographical Site Plan, Floor Plans, Roof Plan, Elevations, Internal Elevations


We recently completed the digital survey of an outstanding Georgian Manor House. This historic building sits in rolling hills on the outskirts of Cheltenham. Dating back to the early 19th century, the Grade II property is constructed of Bath stone elevations under a tiled roof. The south-facing façade is particularly attractive. Accommodation is arranged over 3 principal floors and totals over 7,000 square feet.

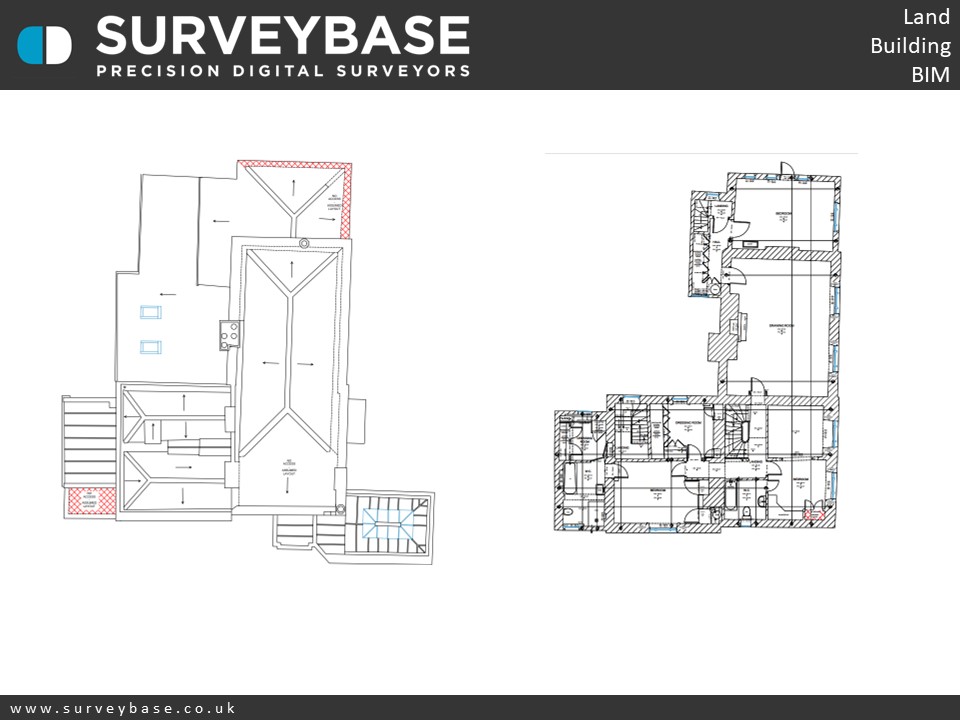

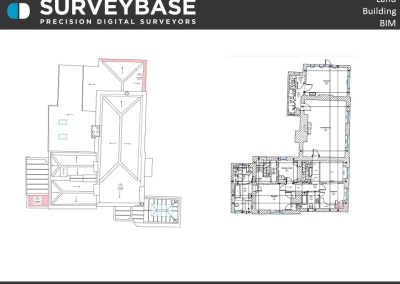

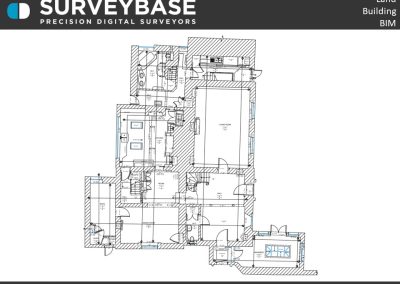

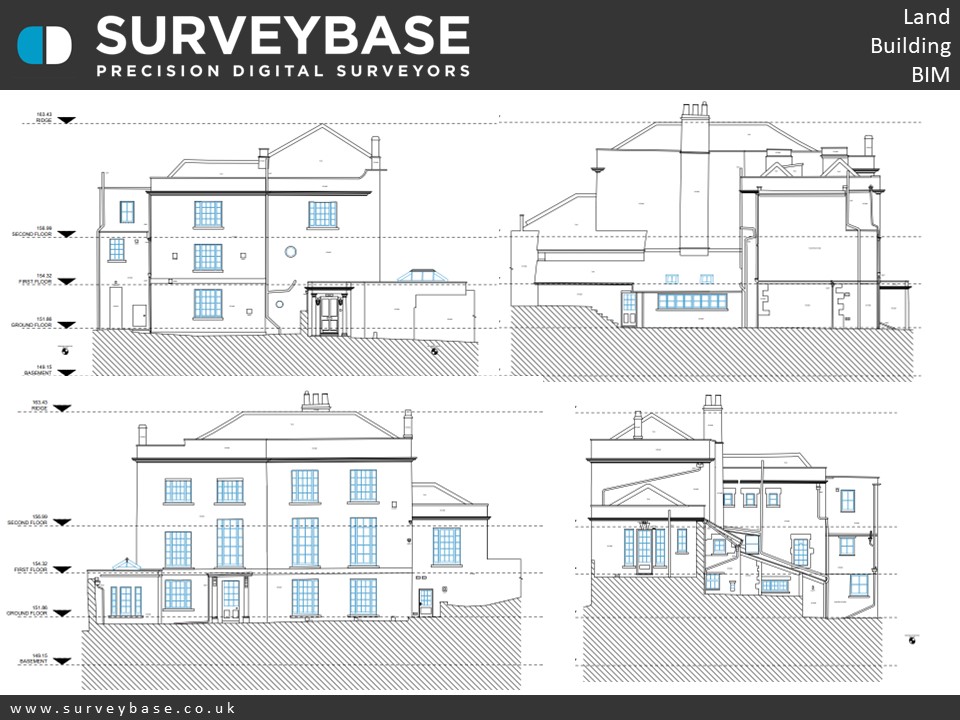

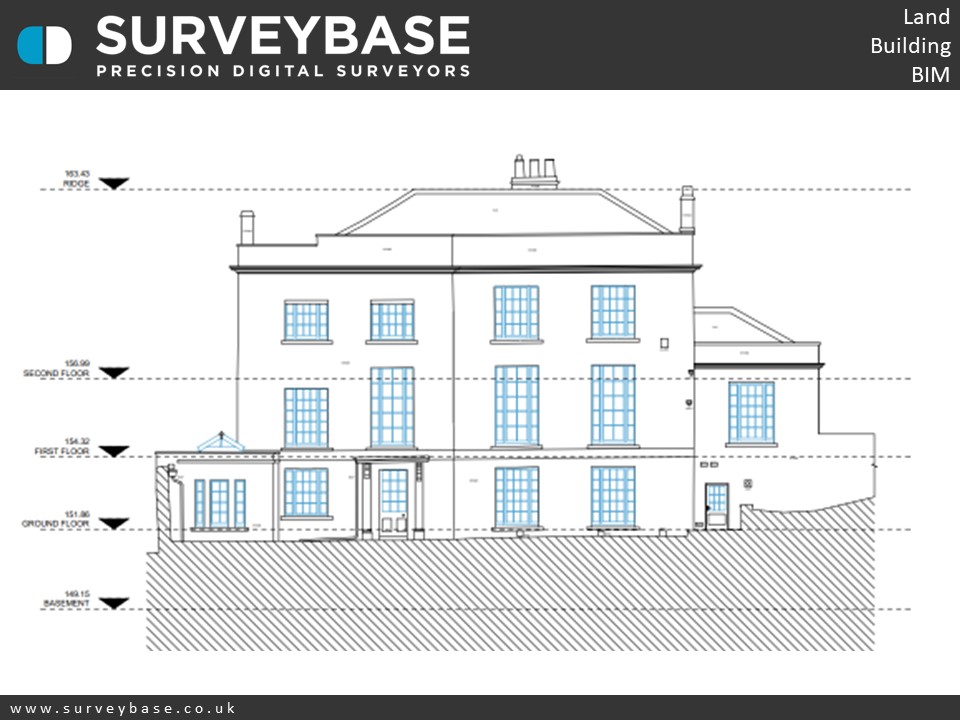

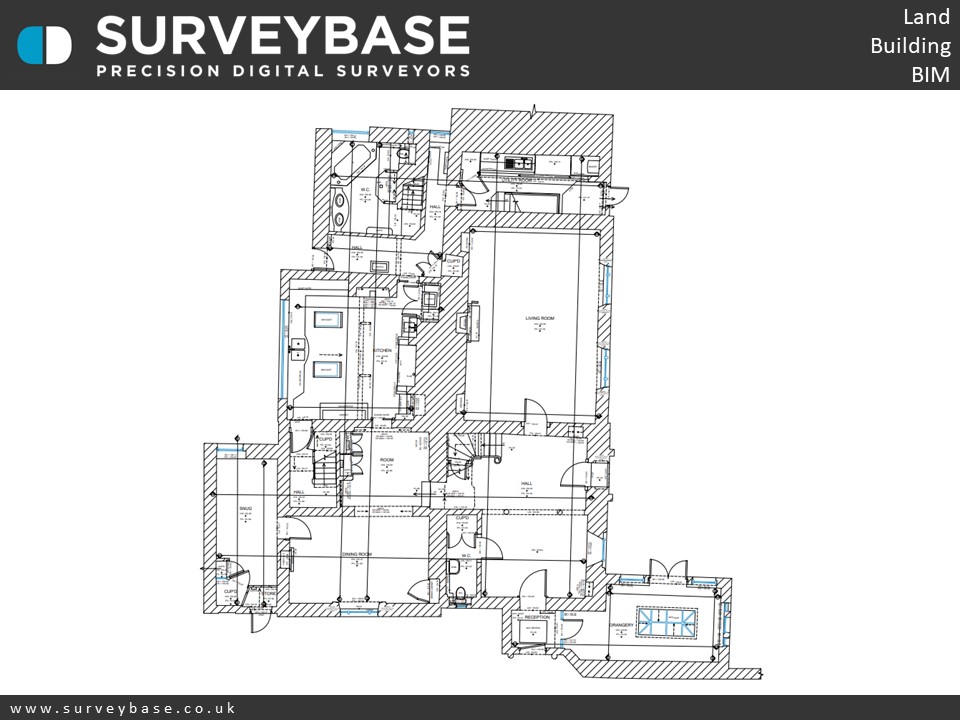

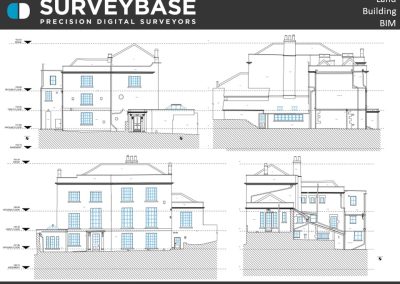

Following a recent purchase our client wanted a precision record for conservation and to provide the foundation for future development. The survey brief included delivery of a topographical site plan, all floor plans, roof plan, elevation plans and building sections. In addition, we were tasked with generating over 48 individual internal elevations.

The survey was undertaken using the latest Leica RTC360 laser scanning system and Trimble Total Station. The detailed brief was tailored made for laser scanning as we can capture comprehensive data on building facades and interior architecture. We generate point cloud files from the scan data and then begin the process of meticulously drafting each plan. On completion the final project is passed through our in-house Compliance Manager for full quality audit of both content and accuracy.

Surveybase operates to a proven quality management system based on ISO 9001. The system begins from first contact and clarification of the survey brief before proceeding through quotation, specification, operations to delivery. We continue supporting our clients through design and construction and hold the raw scan data on file for a minimum of 12 months.

If you would like to find out more about our TopographicalMeasured Building, or Scan To 3D Revit survey services please visit the Surveybase website or call your local office; Bristol 01225 314370, Reading 0118 2072508 or London 02039 066892 .

To obtain a quotation please email your brief to or use our online quotation portal; Fast Quote.

Surveybase Limited are a precision digital surveying practice working on residential and commercial developments across the South from Swansea to the Kent Coast and north to the Oxfordshire.
